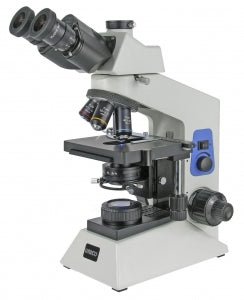

Unico G504 Series Binocular LED Microscope - MICROSCOPE G504T, ADV TRI, 4/10/40/100, PL - G504T

by Unico
In Stock
$2,519.99
SKU G504T
Discount Code: Use code TAKE5 for 5% OFF Total Purchase
Free Shipping Orders Over $100
Fast Shipping
Easy Tracking
Safe & Secure
Checkout

Questions? Speak with a specialist!

Chat with us!
Give us a call!
+1(415)683-7878
This item may require 5-7 days to ship out from our facility.

Product Information: MICROSCOPE G504T, ADV TRI, 4/10/40/100, PL

Manufacturer Part # G504T

Description

  • G504/T Plan Achromat Microscope
  • G504: Seidentopf Binocular Head (Inclined 30°)
  • G504T: Seidentopf Camera-Ready Trinocular Head (Inclined 30°)
  • Nosepiece: 5 position nosepiece provides flexibility
  • Eyepiece: Paired wide field 10X (FN 18 mm) high point eyepieces with dual diopter; A pointer or reticule can be added
  • Objectives: All objectives are parfocal, parecentered, and color-coded.
  • Plan Achromat Objectives: 4X, 10X, 40X, and 100X (oil)
  • Focus: The low position coaxial coarse and fine focusing system designed to lessen user fatigue; The coarse focus tension control allows to increase or decrease the focusing tension; The safety stop prevents damage to objectives and specimensl; The fine focusing is graduated at 0.002 mm
  • Stand: Ruggedly constructed all metal stand and broad low profile base
  • Stage: Heavy duty, built-in graduated mechanical stage with low position coaxial X-Y controls
  • Ball bearing movement (with dovetail mechanism) allows for smooth, precise adjustments; Stage size is 180 mm x 150 mm and the range of X-Y stage movement is 80 mm x 50 mm
  • Condenser: Abbe condenser N.A. 1.25 with graduated iris diaphragm is focusable and centerable
  • Illuminator: Built-in high-intensity LED illuminator with field diaphragm provides Koehler type illumination for clear, sharp images
  • The brightness intensity control (rheostat) is conveniently located and provides steady even illumination at all levels
  • Power Input: 90-240 V & Fuse rating is 250 V and 1.5 A.
HPIS Code 210_80_10_0
Latex Free Yes
