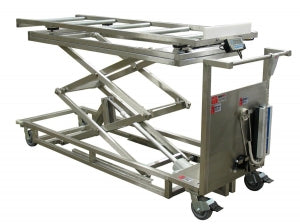

Mortech Cadaver Scissor Lifts - Scissor Lift with Rollers, End Load with Scale - M690-ESC
In Stock
$20,480.99
SKU M690-ESC
Discount Code: Use code TAKE5 for 5% OFF Total Purchase
Free Shipping Orders Over $100
Questions? Speak with a specialist!
Chat with us!
Give us a call!
Email us!
This item may require 5-7 days to ship out from our facility.
Product Information: Scissor Lift with Rollers, End Load with Scale
Manufacturer Part # M690-ESC
Description
- Easy-to-operate, highly maneuverable system eliminates need for manual lifting and allows for safe loading and unloading.
- For both standard and bariatric body trays - accommodates body trays that are 23.1"- 31" (58.7 -78.7 cm) wide with flat bottoms
- Lift control system incorporates a scissor action, hydraulic power lifting system and integral battery charger
- Battery-operated hydraulic lifting system is activated by two control switches to raise and lower body-laden trays
- Lift is supplied with an integral dual-voltage battery charger which can be connected to a standard mains socket, eliminating the need for charging stations
- Display and controls provide a simple, easy to use system with large text display
- Lift is manufactured using heavy-duty stainless-steel tubular sections
- Locking device secures loads and helps prevent shifting
- Constructed of heavy-duty welded steel with a high-strength industrial finish
- Tables can carry up to 500 lbs./226 kg.
- The conveyor platform has five rollers for smooth loading action
- The narrow frame and four 5 in./12 cm.full-swivel solid casters provide smooth maneuverability into and out of tight spaces
- Maximum Elevation: 73" (185 cm); Minimum Elevation 13" (33 cm)
- Extends from a minimum height of 13.5" (34.3 cm) and provide access to the fourth tier of storage racks at 73.2" (186cm)
- To aid in steering, wheels have the ability to lock by using a manual pin swivel lock
- Units are available with a weighing system
| Bariatric | No |
| Chlorine Free | Yes |
| HPIS Code | 770_180_60_0 |
| Latex Free | Yes |
| UNSPSC | 42192404 |
| Unit Compatibility | Mortech Manufacturing |
